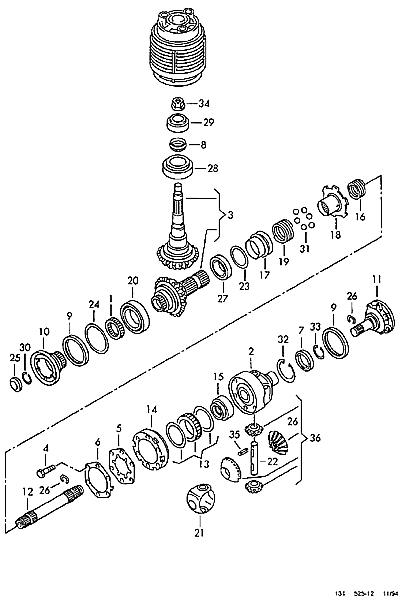

№ КОД ДЕТАЛИ ОПИСАНИЕ ПРИМЕЧАНИЕ ДОПОЛНЕНИЕ




DIFFERENTIAL
FOR:
FINAL DRIVE
REAR





  1

 02D 525 111

 		 CLUTCH HUB
FOR VEHICLES WITH ENGAGEABLE
DIFFERENTIAL LOCK




  2 02D 525 121 A  HOUSING FOR DIFFERENTIAL
  (3)
 02D 525 143
 		 GEAR SET
F >> 70-R-100 410* 		 13/21

AYB,ARH
  (3)
 02D 525 143 B
 		 GEAR SET
F 70-R-100 411>>*  		 17/27

CJK,CJL
  3


 02D 525 143 A


 		 GEAR SET
FOR VEHICLES WITH ENGAGEABLE
DIFFERENTIAL LOCK
F >> 70-R-100 410* 		 13/21





AYA,ARG
  (3)


 02D 525 143 C


 		 GEAR SET
FOR VEHICLES WITH ENGAGEABLE
DIFFERENTIAL LOCK
F 70-R-100 411>>*  		 17/27





CJN,CJM
  4 02D 525 181 A  BOLT WITH SELECTOR PEG   M10X44
  (4) N 102 569 01  SCREW, HEXAGONAL HEAD   M10X32
  5 02D 525 183  THRUST WASHER
  6 02D 525 186  LOCK PLATE
  (7) 02D 525 193 A  BALL BEARING   45X75X16
  8 02D 525 267  SPACER SLEEVE
  9

 02D 525 275

 		 OIL SEAL
FOR VEHICLES WITH ENGAGEABLE
DIFFERENTIAL LOCK  		 80X10X114




  (9) 02D 409 399  OIL SEAL   45X60X8
  10

 02D 525 285

 		 FLANGE
FOR VEHICLES WITH ENGAGEABLE
DIFFERENTIAL LOCK  		 LEFT




  (10) 02B 409 285 C  FLANGE   LEFT
  11
 02B 409 355 B
 		 FLANGE SHAFT
 		 108MM
RIGHT

  12 02D 525 355  OUTPUT SHAFT
  13 02D 525 601 B  FREEWHEEL WITH BEARING SHELLS
  14 02D 525 607 A  FREEWHEEL OUTER RACE
  - 02D 525 608  FLANGE
  15 02D 525 609 A  FREEWHEEL INNER RACE
  16 02D 525 620  PRESSURE SPRING
  17 02D 525 621  OPERATING SLEEVE
  18 02D 525 623  SHIFT ROD COUPLING
  19 02D 525 626  PRESSURE SPRING
  20 02D 409 123  TAPER ROLLER BEARING   66,6X110X22
  21 012 409 170 A  HOUSING-DIFFERNTIAL PINION   BALL:92MM
  22 * 005 409 177  SHAFT - DIFFERENTIAL PINION
  23 02B 409 210  ADJUSTING WASHER   0,65
  (23) 02B 409 210 A  ADJUSTING WASHER   0,7
  (23) 02B 409 210 B  ADJUSTING WASHER   0,75
  (23) 02B 409 210 C  ADJUSTING WASHER   0,8
  (23) 02B 409 210 D  ADJUSTING WASHER   0,85
  (23) 02B 409 210 E  ADJUSTING WASHER   0,9
  (23) 02B 409 210 F  ADJUSTING WASHER   0,95
  (23) 02B 409 210 G  ADJUSTING WASHER   1
  (23) 02B 409 210 H  ADJUSTING WASHER   1,05
  (23) 02B 409 210 J  ADJUSTING WASHER   1,1
  (23) 02B 409 210 K  ADJUSTING WASHER   1,15
  (23) 02B 409 210 L  ADJUSTING WASHER   1,2
  (23) 02B 409 210 M  ADJUSTING WASHER   1,25
  24 02D 409 247  ADJUSTING WASHER   0,65
  (24) 02D 409 247 A  ADJUSTING WASHER   0,7
  (24) 02D 409 247 B  ADJUSTING WASHER   0,75
  (24) 02D 409 247 C  ADJUSTING WASHER   0,8
  (24) 02D 409 247 D  ADJUSTING WASHER   0,85
  (24) 02D 409 247 E  ADJUSTING WASHER   0,9
  (24) 02D 409 247 F  ADJUSTING WASHER   0,95
  (24) 02D 409 247 G  ADJUSTING WASHER   1
  (24) 02D 409 247 H  ADJUSTING WASHER   1,05
  (24) 02D 409 247 J  ADJUSTING WASHER   1,1
  (24) 02D 409 247 K  ADJUSTING WASHER   1,15
  (24) 02D 409 247 L  ADJUSTING WASHER   1,2
  (24) 02D 409 247 M  ADJUSTING WASHER   1,25
  25

 002 517 289 A

 		 CAP
FOR VEHICLES WITH ENGAGEABLE
DIFFERENTIAL LOCK




  (25) 020 409 289 B  COVER
  26 012 409 413  CIRCLIP
  27 002 517 185  TAPER ROLLER BEARING   46X75X18
  28 091 517 185 B  TAPER ROLLER BEARING   50X80X20
  29 003 519 185 B  TAPER ROLLER BEARING   38,1X65X18
  30 020 311 381 F  LOCK RING   25,8X2,5
  31 N 025 657 1  BALL   6,0III
  32 N 012 298 1  LOCK RING   75X2,5
  33 N 012 372 2  LOCK RING   45X1,75
  34 N 908 113 01  HEX. NUT   M30X1,5
  35 * N 905 387 01  SPRING PIN   5,4X28,5
  36 012 498 081 C  1 SET OF DIFFERENTIAL PINIONS   BALL:92MM
